Numark|露玛克 - Mixstream Pro

Advanced Setup



BUILT-IN SPEAKERS & OUTPUTS


The Numark Mixstream Pro offers high quality built-in speakers located at the front panel. Starting from Engine OS 2.4 this output is not part of the USB Audio interface. The audio signal is taken from the Master Output before the Main Volume (pre-fader) and its Volume control at the top-right is independent. The speakers are the ultimate, convenient solution for practicing, live streaming, video content creation, and personal monitoring when connected to a larger sound system.


MICROPHONE


The Numark Mixstream Pro offers a Microphone input and a Volume control knob at the front panel. The Microphone input is not part of the USB Audio Interface and is routed directly to the Main output, thus is not included in VirtualDJ Audio setup but its signal will be recorded along with your Mix.

RECORDING


Starting from Engine OS 2.4, the Mixstream Pro offers a special record input, so no special steps are required to record and/or broadcast your Mix and the Microphone using VirtualDJ, as long as the default Audio setup is applied with the Input Channels 1,2 assigned as record loopback input.

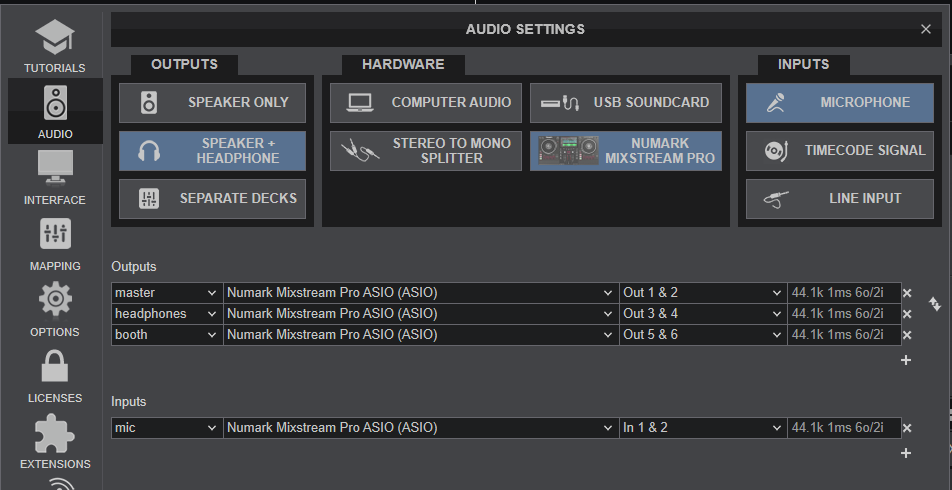

Numark Mixstream Pro - Default Audio Setup


The name of the driver could be different if a Pro GO is connected




For further Technical features and specifications, visit

Numark MIXSTREAM PRO
Product's Page


Numark MIXSTREAM PRO PLUS
Product's Page


Numark MIXSTREAM PRO GO
Product's Page
