Forum: VirtualDJ Technical Support

Topic: Novation Launchcontrol XL 3 - Page: 3

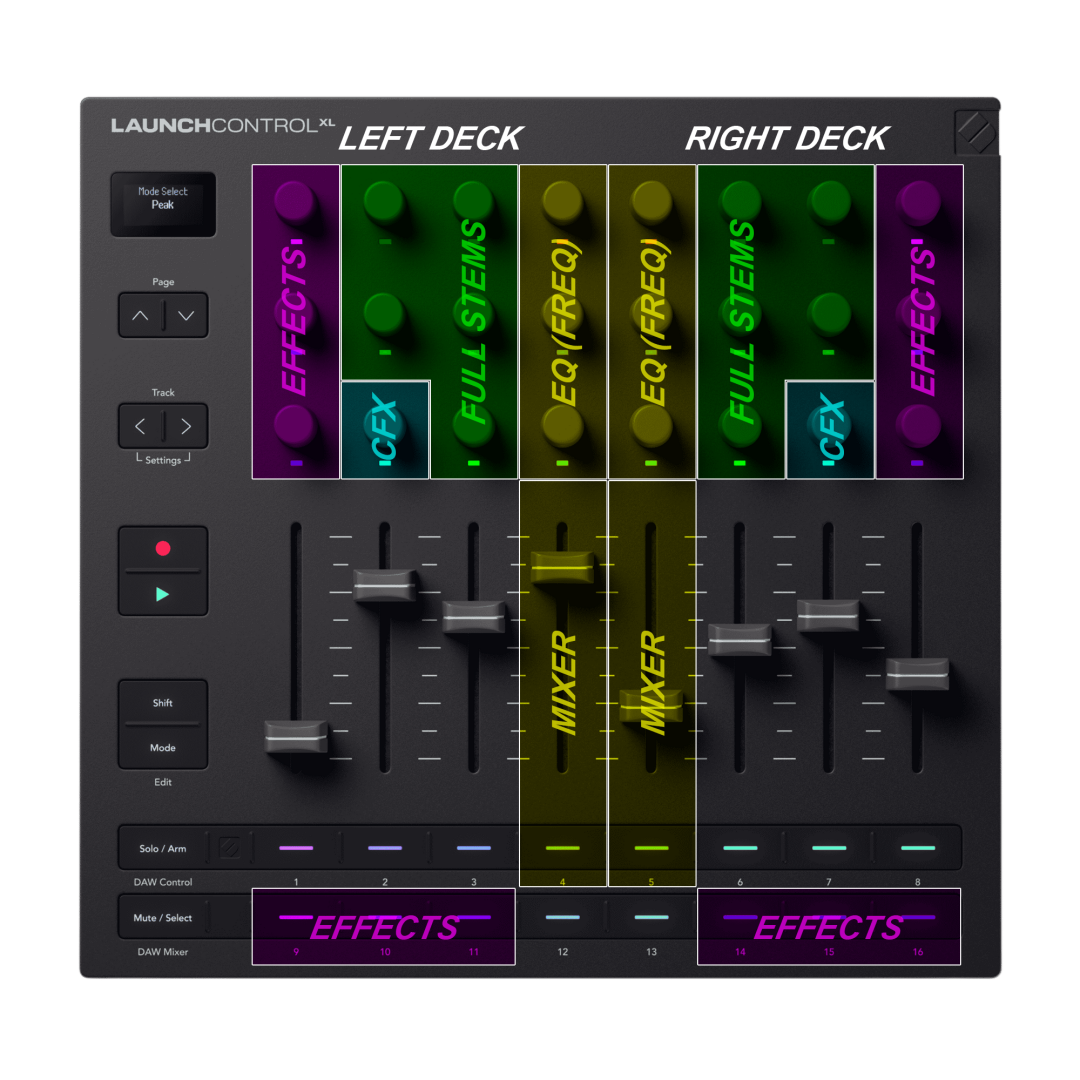

TEMPLATE 1

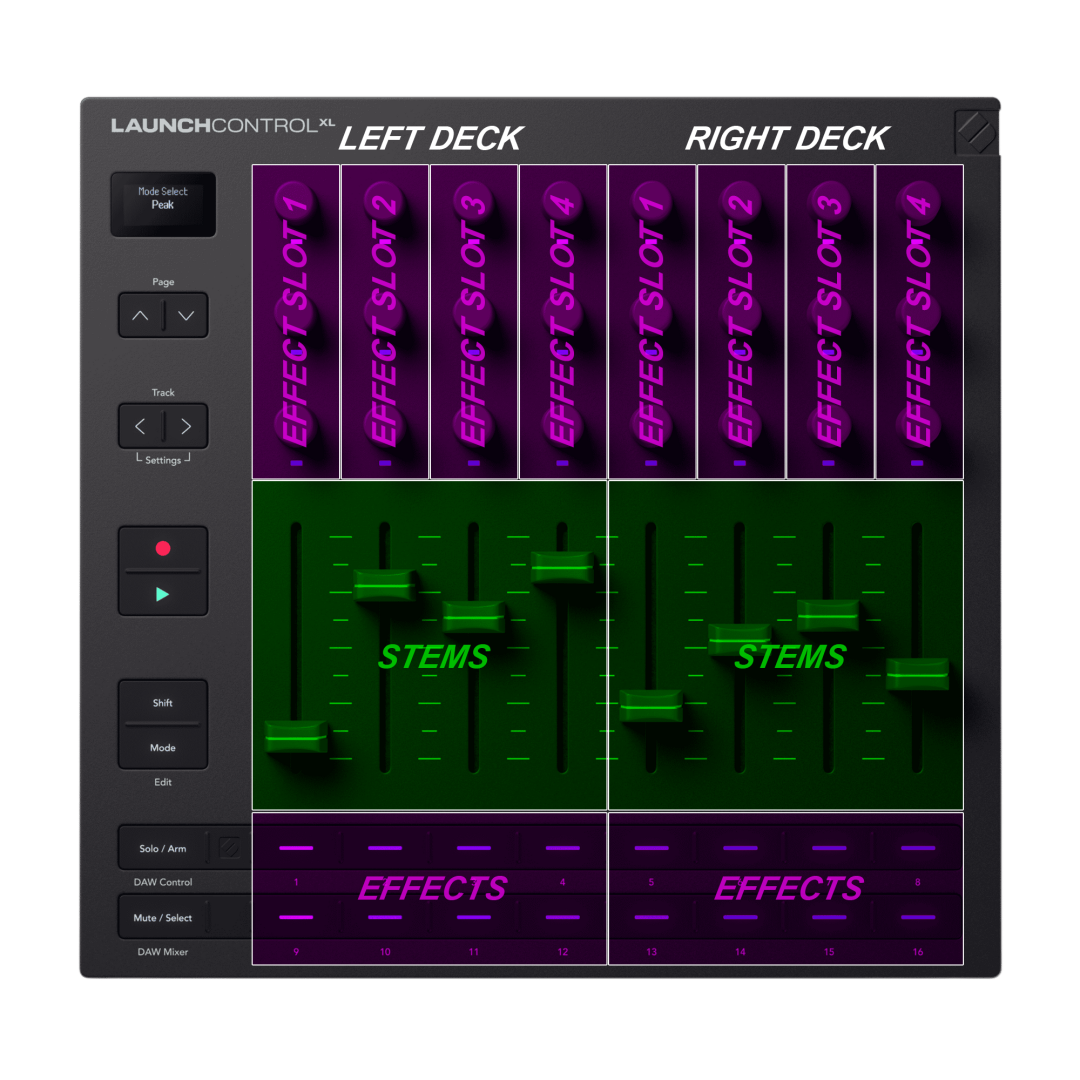

TEMPLATE 2


Since I'm preparing the files for the unit's manual, I thought I would share these.
They are the overview of the two templates offered.

Manual should be ready by tomorrow anyways..

PS: If there's any suggestion that would make sense to add (mostly on Template 1) I'm open to update/modify it.

Thanks!

neat schema;
template 1; encoder push is kill? [kill:neutral eq, mute:unmute stems, on:off cfx, 0%:default fx, ]
4||12, 5||13 mute while_pressed ?

1,2,3,6.7,8; effect_select_popup that encoder navigates?

LED under encoder, color_mix?


Side idea, you have 2*8 pads there [1-16], you could move effect_active to encoder push and also have pads.

looks like a nice bit of HW, just about right, enough pokey bits to plug & play, plenty of scope to nerd out, not too many pokey bits to need an hour refresher course if you don't touch it in 2 weeks [how hard you nerded out dependant]

I said it before, with my remix skin I'd have a field day, but then... I'd be remapping all my Aux devices plus this thing... it wouldn't be a 'field day' it would be a several month festival with beer* laden air drops.

There's no "push" functionality on encoders.
On template 1 I guess I could put effect select on buttons 1,2,3,6,7,8 since that's what I have done on template 2.
My thought though was to leave the entire line clear so that there's no confusion with buttons 4 and 5 that are PFL.
I will give it some second thought...

no push encoders?, guess they need to save ideas for the mk4.

Template 1:

the 6 currently unused sliders, could possibly, be mapped as, say EZ-Remix Stems crossfaders, to Crossfade each of the EZ-Remix stems, between the Left and Right decks, (and likewise, the other 3, to crossfade the 3 Frequency EQs, left and right)

pads 12 and 13 used as "SHIFT" and "ALT", to add 2 additional functions to each of the existing controls "while_pressed"

Or, to use 12, 13 to shift all functioning to each of lower decks when enabled.
in otherwords, when pad 12 is active, the left half of the Lauchcontrol XL3 controls the lower left deck.
and when pad 13 is active, the right half of the Lauchcontrol XL3 controls the lower right deck.



--------
Another approach:
use one of sliders (per side), to, BOTH isolate, stem vocal, AND increase channel gain by a small amount.
(maybe with the gain increase = 50% of the vocal isolate)
Slider Up = Auto Gain 50% and Vocal isolate 50% (none), and Slider Down = Auto Gain 62%, and Vocal Isolate 75% (3 o'clock)
Used for tweaking, when the vocals need bit more "presence" in a track.

All of these ideas are nice, but not for a factory mapper I think.. I mean, 9 out of 10 users will try to use it "as is" without reading any manual, and memorizing more advanced stuff without a silkscreen is not that easy.
We prefer to "keep it simple", unless a simple but brilliant idea missed our attention..

PS: Since those faders are not assigned to anything, it would be easier I think for an advanced user to remap them and add what he wants/likes, rather than having to figure out what to change on a more complex mapping.. I mean you literally have to substitute nothing with any script you like (as long as it's normalized) and you're done!

Yes.. agree.. for the factory mapping, it's great, to allow every user a place to create their own customization, to their individual work flow.
As some may be more interested in lighting control vs EQ's , effects or video, etc.

Awesome job Phantom, with the layout.


And tempted, to add to my setup. lol

locoDog wrote :
no push encoders?, guess they need to save ideas for the mk4.


Yes! And the also need to add relative mode for the user Midi mode. I hope they'll do it in a further firmware release.

This looks great!

I think many people would like to see a way to swap decks on their main controller. FLX4 and others don't have that. Ableton button + button1 to swap the left side, button8 for right side? As locodog suggested, change some colors for visual feedback .

As a template 3, I've seen suggestions to use it as a light controller, maybe too specific.

For my personal need, I tried to map it to be a small limited controller, for use on the side of my desk when I'm working. The lack of availabity of relative encoder stopped me (jogwheel), but I'll redo it with the new device definition. I think it's worth doing as a 3rd template since this is quite different from the other too and can lead to further good ideas for personal implementation.

Since you've just done it, it may be a good time to do the newer Launchcontrol (not-XL). Full stems and 1 effect probably...


Great thanks! I can’t wait to try it.
