jusblaze246
Hey forum, I "DJ" as a hobbyist and therefore really have zero experience in setting up live sound. I am however very interested in the ins and
outs of everything "sound.".........I am having trouble understanding something and I am hoping someone can clear this up for me. Here
goes.......If I am using 2 powered cabs and a powered sub running to a mixer and then to a PC. The powered speakers and powered sub are daisy
chained to each other, ultimately leading to TWO (right and left) plug ins going into the mixer, correct? If they are daisy chained together
going into the mixer, how are the channels separated? How can I control the left cab separate from the right cab and adjust the sub separate
from them both? It seems with them all running together and THEN into the mixer that it would all be ONE channel. Is this also true when
running 2 cabs and a sub to an amp then to a mixer as well? With speakers each needing ITS OWN connection to the amp it seems they
wouldn't need to run into the mixer on the same channel even if they were not powered....thanks for the help! =D
outs of everything "sound.".........I am having trouble understanding something and I am hoping someone can clear this up for me. Here
goes.......If I am using 2 powered cabs and a powered sub running to a mixer and then to a PC. The powered speakers and powered sub are daisy
chained to each other, ultimately leading to TWO (right and left) plug ins going into the mixer, correct? If they are daisy chained together
going into the mixer, how are the channels separated? How can I control the left cab separate from the right cab and adjust the sub separate
from them both? It seems with them all running together and THEN into the mixer that it would all be ONE channel. Is this also true when
running 2 cabs and a sub to an amp then to a mixer as well? With speakers each needing ITS OWN connection to the amp it seems they
wouldn't need to run into the mixer on the same channel even if they were not powered....thanks for the help! =D
发表时间 Fri 07 Dec 12 @ 11:48 am
DJECoast
PC to mixer I believe is from the headphone jack into RCA and PC to midi controller would be USB.
From mixer/controller to sub would be XLR to XLR, 1/4" or RCA to XLR left and right....

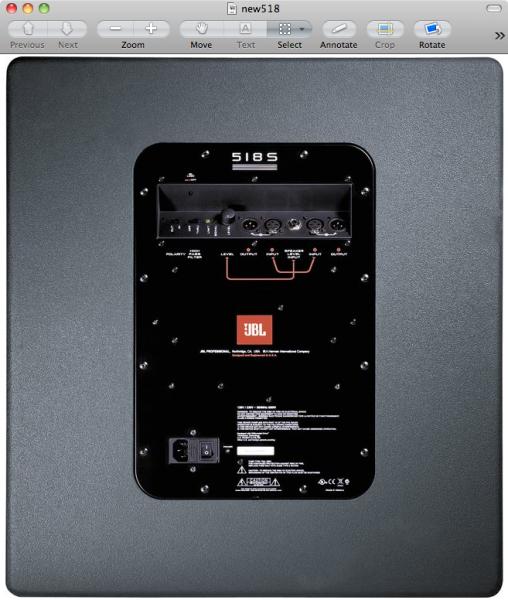

Then out of sub XLR left and right into your tops as you can see by the rear of the sub here....
From mixer/controller to sub would be XLR to XLR, 1/4" or RCA to XLR left and right....
Then out of sub XLR left and right into your tops as you can see by the rear of the sub here....
发表时间 Sat 08 Dec 12 @ 12:09 am
jusblaze246
thankx DJECoast.....
发表时间 Sat 08 Dec 12 @ 4:52 am
DJECoast

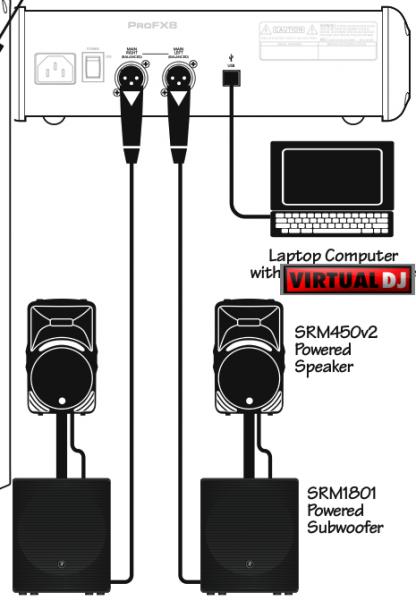

Heres a basic diagram from pc to mixer/midi controller into subs then into tops via XLR
发表时间 Sat 08 Dec 12 @ 8:11 am
