Gemini - PMX20



  • Connect your amplifier of a pair of amplified speakers to one of the XLR/RCA Master Outputs at the rear panel.
  • Connect the USB socket at the rear panel of the PMX20 to a USB port of your computer, suing standard USB cable
  • Optionally connect your CD Players/Turntables or any other analogue source to the CH1 to CH4 Input sockets at the rear panel
  • Connect the PMX20 to an AC Plug and power on the unit, after all connections are made.


Drivers :
For Windows computers, download and install the Gemini ASIO drivers from http://geminisound.com/product/pmx-20
No drivers is required to be installed for Mac OSX computers.

Firmware : Make sure your unit is updated to the latest firmware from http://geminisound.com/product/pmx-20

STEP 3 : VirtualDJ Setup

Download and install VirtualDJ from http://www.virtualdj.com/download/index.html (in case you have not done already)

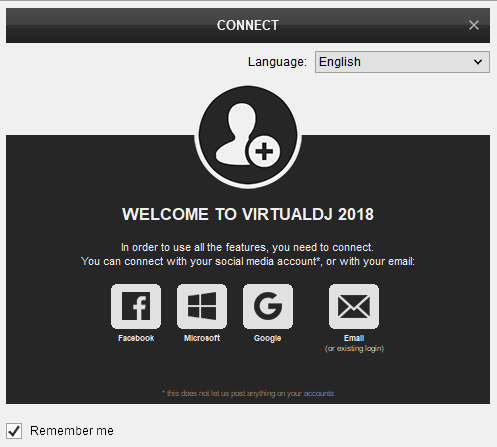

Once VirtualDJ is opened, a Connect Window will appear to enter your account credentials.

A Pro Infinity, a Plus Controller or a Pro Subscription License is required to fully use the Gemini PMX20. Without any of the above Licenses, the controller will operate for 10 minutes each time you restart VirtualDJ.

The Gemini PMX20 is also operating with the bundled VirtualDJ 8 Limited Edition.

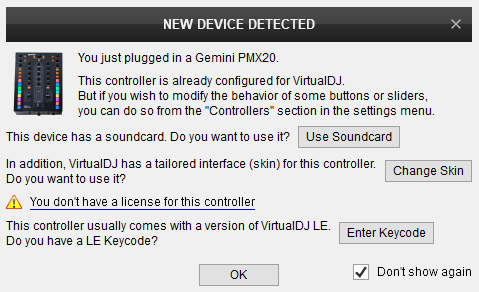

A detection window will appear when the unit is first connected with VirtualDJ, verifying proper connection.

Click on the "Use Soundcard" if your speakers are connected to the Master Output at the rear panel of the PMX20.
You can still make changes in the Audio setup from VirtualDJ Settings->AUDIO tab.

Click on the "Change Skin" for VirtualDJ to load the 4 Decks default skin.

An additional Enter Keycode button will be available, if your Account does not offer a Pro or Plus License or you have skipped the Login process.
Click on this button and enter the Keycode (serial) of your VirtualDJ LE.

Make your selections and press OK.

The unit is now ready to operate.
